FiiO K11 R2R Review (2026): The Best Warm DAC/Amp Under $200?

This FiiO K11 R2R review covers a product that occupies genuinely rare ground at this price. R2R (resistor ladder) DAC architecture was the standard approach in high-end audio for decades — warm, textured, and analogue-feeling in a way that modern delta-sigma chips simply don’t replicate. Under $200, R2R DACs almost don’t exist. The K11 R2R is one of the only exceptions, pairing a discrete resistor ladder conversion stage with the same 1,400mW balanced amplifier found in FiiO’s well-regarded K11 ESS — and doing it for around $180.

If you’ve already seen it listed in our roundup of the best headphone amplifiers under $200, you’ll know it sits alongside the K11 ESS as a deliberate alternative rather than a replacement. This review unpacks what that means in practice — specifically, who the R2R character actually benefits, which headphones and music types respond to it most, and whether the premium over the ESS version is justified for your setup.

Who Is the FiiO K11 R2R For?

The listener it was designed for

The K11 R2R is built for a listener who already knows what they want sonically and knows they’re not getting it from their current setup. Specifically: someone running a system that sounds analytical, forward, or fatiguing — whether that comes from the headphones, the recordings, or a previous ESS or AKM-based DAC — and who wants to address that character at the source rather than through EQ or headphone swapping.

R2R architecture produces a presentation that many experienced listeners describe as warmer and more mid-forward than delta-sigma alternatives. Vocals have more body. Acoustic instruments have more texture. Transients feel more natural and less etched. For acoustic music, jazz, classical, and vocal recordings, this character is a genuine asset. It doesn’t add artificial warmth — it converts differently, and the result is a different kind of accuracy than ESS chips provide.

When the ESS version is the better choice

The K11 R2R is a less natural fit for listeners whose system already leans warm, or those who primarily listen to electronic music, modern pop, or detail-heavy recordings where the ESS chip’s precision is an advantage rather than a drawback. It’s also not suited to listeners building their first system who aren’t yet sure what tonal character they’re after — in that case, the K11 ESS is the safer starting point. This guide to whether you need a headphone amp is a useful starting point for first-time buyers still working through the basics.

FiiO K11 R2R — Key Specifications

The key specification that separates the K11 R2R from everything else at this price is the DAC architecture — not the amplifier stage, which is shared with the K11 ESS. Both deliver 1,400mW balanced through the 4.4mm jack, both use the same aluminium chassis, and both accept the same three digital inputs. The only functional difference is how the digital signal gets converted to analogue. Understanding how that conversion choice affects impedance matching and sound character at different headphone loads is explained in this guide to amplifier impedance.

Design and Build Quality

Chassis and shared hardware

The K11 R2R uses an identical chassis to the K11 ESS — same aluminium alloy enclosure, same footprint, same front panel layout, same volume pot. If you’ve handled one, you’ve handled both. The build is solid and confident for a sub-$200 unit, with no flex, no rattles, and a volume knob that has a well-damped, precise feel. FiiO’s K-series build quality has improved consistently across generations and the K11 represents the current high point in their sub-$200 range.

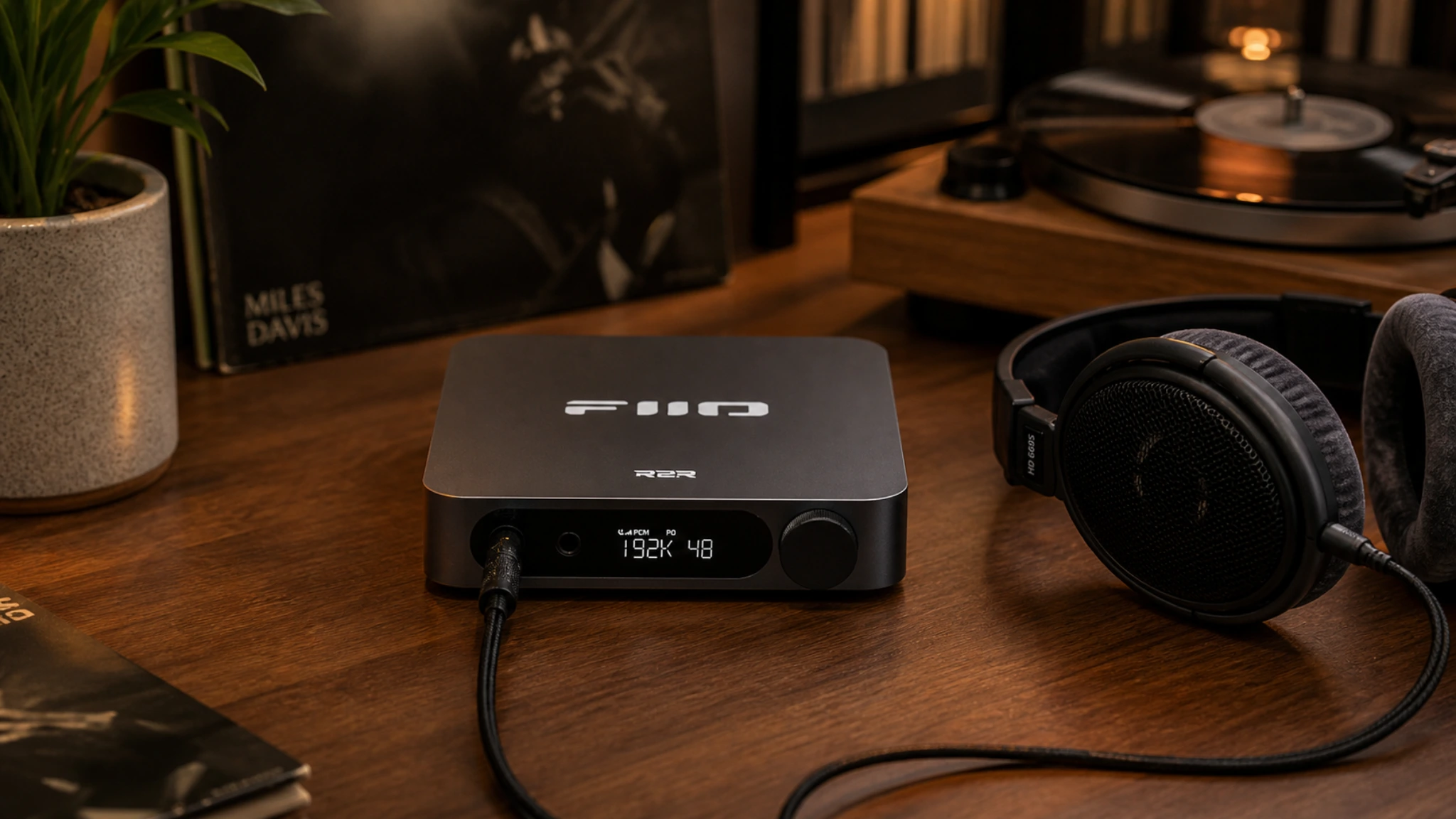

Front panel and display

The front panel has the volume knob on the right, the gain switch (Low/High) in the centre, and both headphone outputs — 4.4mm balanced on the left and 6.35mm unbalanced beside it. A small LED display on the front shows the active input and sample rate. This display is one of the K11 R2R’s distinguishing visual features — it actively shows the incoming digital signal format, which is useful for confirming that high-resolution files are being decoded at their native resolution rather than being downsampled upstream.

Rear panel and connectivity

The rear panel carries USB-C, Toslink optical, and coaxial digital inputs, the RCA line output, and the DC power input. Input selection is handled via the front panel rather than a physical rear switch, which keeps the back of the unit clean. The RCA line output is fixed-level — useful for feeding powered speakers or a stereo receiver, but not volume-controlled in the way that a preamp output would be.

Sound Quality

The R2R character explained

R2R conversion uses a ladder of precision resistors to convert each digital sample to an analogue voltage. Delta-sigma chips — ESS, AKM, Cirrus Logic — use a completely different approach: high-speed oversampling and noise shaping. Neither is objectively more accurate in absolute terms. They produce different presentations, and the R2R presentation has a specific character: warmer in the midrange, more textured in the upper bass, and softer in the very top end compared to ESS-based alternatives.

In practice, the FiiO K11 R2R sounds less etched and less forward than the K11 ESS on the same headphones and recordings. Vocals sit slightly further back and feel less exposed. Acoustic guitar and piano have more body and a more natural decay. The top end is present and detailed — just less sharp-edged. Whether this is an improvement depends entirely on what you’re comparing it to and what you’re listening to.

With acoustic and classical recordings

This is where the K11 R2R makes its strongest case. String quartets, piano recordings, folk vocal music, and jazz acoustic recordings all benefit from the added midrange body and the softened transient edges. Instruments sound more like instruments — less like a high-resolution photograph of an instrument. Long listening sessions on this material become notably less fatiguing than on ESS-based units.

With electronic and modern recordings

The character advantage reverses here. Electronic music, modern pop production, and detail-heavy recordings that benefit from ESS precision lose some of their edge and definition through the R2R stage. Bass is still controlled and present, but the upper midrange clarity that makes a well-mastered electronic track sound impressive from an ESS chip is slightly softened. The R2R doesn’t make these recordings sound bad — it just doesn’t flatter them the way the ESS does.

With headphones — impedance and sensitivity

The 1,400mW balanced output handles the full impedance range without compromise. Sennheiser HD 6XX at 300Ω, Hifiman HE-400se planars, and sensitive IEMs all perform correctly from the K11 R2R’s amplifier stage — which is identical to the K11 ESS’s. The R2R character is particularly well-matched to Beyerdynamic headphones, which tend toward brightness, and to Audeze planars, which already have significant bass weight that the R2R character complements rather than adds to excessively.

Connectivity and Compatibility

Digital inputs

Three digital inputs — USB-C, optical Toslink, and coaxial — cover computers, TVs, CD players, and any streaming device with digital output. USB is recognised as a plug-and-play USB audio device without drivers on Windows 10/11, macOS, and Linux. Optical handles TVs and game console audio via the TV’s optical output. Coaxial connects CD transports and streamers with digital coaxial output. Input switching is handled from the front panel and confirmed on the small display.

Outputs and integration

Two headphone outputs — 4.4mm balanced and 6.35mm unbalanced — cover headphones with standard and balanced cables simultaneously. The RCA line output feeds powered speakers or an integrated amplifier, making the K11 R2R a usable preamp for a speaker system as well as a headphone amp. Both outputs are active simultaneously, which allows the K11 R2R to anchor a complete desktop system feeding both headphones and speakers from a single digital source. How to configure a DAC/amp as the central hub of a desktop system — particularly when it feeds both a headphone output and a speaker output — is covered in detail in this guide on DAC versus amplifier upgrades.

What it lacks

No Bluetooth, no analogue input, no remote. These are the same limitations as the K11 ESS — the two units are functionally identical outside of the DAC chip. Listeners who need Bluetooth should look at the LOXJIE A30. Listeners who need a volume-controlled preamp output should look at the Schiit Magni Unity. The K11 R2R is a wired, computer-adjacent DAC/amp — excellent at that specific job, and not designed for anything broader.

How the FiiO K11 R2R Compares

FiiO K11 R2R vs FiiO K11 ESS

Same chassis, same amplifier stage, same output power, same input configuration. DAC architecture is the only difference. ESS produces a clean, detail-forward, analytically precise presentation. R2R produces a warmer, more mid-forward, more analogue-feeling character. Choosing between them is a question of tonal preference and headphone matching — not of capability. For listeners who already know they prefer warmth, the R2R is the correct choice. For those unsure, the ESS version costs less and covers more use cases neutrally.

FiiO K11 R2R vs iFi ZEN DAC V2

Both sit at the top of the sub-$200 DAC/amp range and both lean toward musical warmth — the ZEN DAC V2 via its Burr-Brown chip, the K11 R2R via its discrete resistor ladder. Output power differs significantly: 1,400mW balanced for the K11 R2R versus 280mW for the ZEN DAC V2. For demanding headphones above 150Ω, the K11 R2R’s amplifier stage handles them more effectively. The ZEN DAC V2 adds MQA full hardware decoding, which the K11 R2R lacks. Tidal Masters subscribers may find that difference meaningful; most other listeners won’t.

FiiO K11 R2R vs Topping DX5 Lite

The Topping DX5 Lite is a similarly priced DAC/amp using an ESS chip with balanced output. Its output power is higher than the ZEN DAC V2 and broadly comparable to the K11 R2R. Sonically, the DX5 Lite leans toward Topping’s characteristic clinical precision — the opposite direction from the K11 R2R. Listeners who want the most accurate, measurement-optimised presentation at this price should look at the DX5 Lite. Listeners who want warmth and analogue character should choose the K11 R2R. The two represent the opposite ends of the sub-$200 DAC/amp character spectrum.

Best Headphone Pairings

The K11 R2R’s character pairs best with headphones that either need tonal balancing or that complement the R2R presentation naturally:

Is the FiiO K11 R2R Worth It?

For the right listener

If you know you want R2R character — because your current system sounds clinical, because your headphones are bright, or because your primary listening material is acoustic and vocal — the K11 R2R is the only way to get genuine R2R architecture under $200. That’s not a small thing. R2R DAC/amps typically start at $300–$400. The K11 R2R brings that character down to a price where it becomes accessible to a much wider listener base, and it does so without compromising on the amplifier stage.

For the listener who isn’t sure

The modest premium over the K11 ESS is only worth paying if you understand the tonal difference you’re buying. Listeners who aren’t sure whether they prefer R2R warmth over ESS precision are better served by starting with the K11 ESS — it’s the more broadly neutral choice — and moving to R2R later if they identify a specific need for more warmth. Paying the premium on uncertainty produces no benefit.

FiiO K11 R2R Review — Final Verdict

What makes it worth considering

The FiiO K11 R2R earns its place in the lineup by being genuinely unique. R2R architecture under $200 doesn’t exist elsewhere in this form — with 1,400mW balanced output, dual headphone outputs, three digital inputs, and FiiO’s proven build quality. For listeners who understand what R2R sounds like and know that’s what their system needs, it’s an easy recommendation. The amplifier stage is identical to the K11 ESS, which means no capability compromise is made to afford the R2R DAC.

Who should look elsewhere

Listeners who primarily want maximum output power with clinical precision should look at the K11 ESS. Listeners who want Burr-Brown warmth alongside MQA decoding and a more established purchase history should look at the iFi ZEN DAC V2 — covered in full in the iFi ZEN DAC V2 review, where the distinction between R2R and Burr-Brown warmth is also addressed directly. For the full picture across all seven options in this price range, the complete headphone amplifier roundup maps each use case in detail.

Check Price on Amazon

Approx. price: $165–$190. Best for warm character — the only R2R DAC/amp under $200.

Frequently Asked Questions
