Quick overview: This step-by-step guide walks you through how to install a car amplifier safely — from disconnecting the battery and routing power to choosing a grounding point, installing the fuse, and testing the system. The wiring kit checklist below makes sure you have the right parts before you start.
Estimated skill level: Beginner to intermediate. Estimated time: 1–2 hours depending on vehicle and prep. Read each step fully before touching any wires.
Safety First — Prepare Before You Touch Anything
Always start by disconnecting the negative terminal of the vehicle battery. This prevents shorts, accidental power-on while wiring, and reduces the risk of blowing components. Wear safety glasses and keep metal tools away from battery terminals.
Step 1 — Disconnect the battery
Remove the vehicle key from the ignition. Use a wrench to loosen and remove the negative (-) battery terminal first, then leave it safely isolated while you work. If your car has multiple batteries or a battery disconnect switch, isolate the entire system before proceeding.
Step 2 — Prepare a clean workspace
Clear the trunk or seat areas where you’ll be working. Lay out the wiring kit and tools so you can access them without stretching cables across sharp metal or hinges, and keep fuses and small parts in a magnetic tray or small container so nothing gets lost mid-install.
What You Need — Amplifier Wiring Kit Checklist
Before you begin, make sure you have every item in the wiring kit ready. Missing a critical part mid-install is frustrating and can lead to unsafe shortcuts — like leaving a run unfused because the right fuse holder isn’t on hand yet.
- Power cable (8 AWG–0 AWG) — choose gauge based on amp RMS and run length
- Ground cable — same gauge as power cable; keep as short as possible
- In-line fuse or ANL fuse + fuse holder — mounted within 12 inches of the battery terminal
- RCA cables (shielded) — high-quality, run away from the power cable
- Remote turn-on lead (blue) — triggers the amp from the head unit or line output converter
- Speaker wire — gauge according to speaker/amp power (16–12 AWG common)
- Ring terminals & butt connectors — properly crimped or soldered
- Wire loom / cable ties / grommets — protect wiring through the firewall and under panels
- Multimeter — verifies voltage and continuity
- Crimper / wire stripper / panel removal tools
- Heat shrink tubing / soldering iron (optional) — for more durable connections
Pro tip: If you’re using a factory head unit, consider a quality Line Output Converter (LOC) to get clean signal to the amp without cutting factory wiring.
How to actually choose your wire gauge and fuse rating
“8 AWG–0 AWG” is a wide range, and picking the wrong end of it either wastes money or creates a real safety issue. The gauge you need depends on your amp’s total RMS power draw and how far the wire has to run from the battery — not on what the amp’s box happens to say about peak wattage.
Start by finding your amplifier’s actual current draw: for a Class AB amp, divide the total RMS wattage by 13.8V then by 0.50 (roughly 50% efficient); for a Class D amp, divide by 13.8V then by 0.75–0.80 (Class D runs more efficiently, so it draws less current for the same output). A 500W RMS Class D amp, for example, draws roughly 500 ÷ 13.8 ÷ 0.75 ≈ 48 amps. Once you have that number, match it against your cable run length:
- ~500W RMS system, 10–15 ft run: 8 AWG is a common starting point; step up to 4 AWG for longer runs
- ~1,000W RMS system: 4 AWG typical; 1/0 AWG for longer runs or a demanding amp
- ~1,500W RMS monoblock: 1/0 AWG is usually the right call
- ~2,000W RMS and up: 1/0 AWG minimum, often 2/0 AWG — and at this level, budget for the Big 3 upgrade covered below
The fuse near the battery exists to protect the wire, not the amp — it should be rated at or just above the wire’s safe current-carrying capacity, so it blows before the wire itself overheats in a short. Most amp wiring kits include a fuse matched to the included wire gauge; if you’re buying components separately, don’t guess at a fuse rating — match it to the wire you’re actually running.
Higher-power builds — the “Big 3” upgrade: If your total system draw is climbing past roughly 500–1,000W RMS, the factory-thin wiring between your alternator, battery, and chassis ground can become the actual bottleneck — not your amp wiring. The “Big 3” upgrade replaces three of these factory charging-system wires with heavier-gauge cable to support the extra current draw. It’s not something every install needs, but if you’re seeing dimming headlights or voltage sag under bass-heavy passages after a proper install, an undersized charging system — not a wiring mistake — is the likely cause.

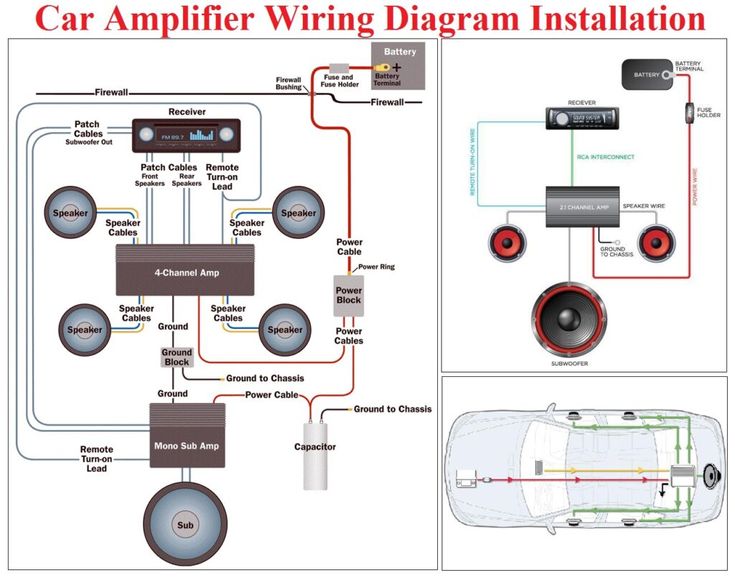

Route Power & Install the Fuse
Step 1 — Choose the power cable route
Run the power cable from the battery to the amplifier location. Prefer the passenger-side firewall grommet (or the existing OEM grommet), and avoid routing beside hot exhaust or sharp edges. Keep the power cable on the opposite side of the vehicle from the RCA cables to reduce noise.
Step 2 — Install the in-line fuse near the battery
Install the chosen fuse holder within 6–12 inches of the positive battery terminal. Don’t connect the fuse itself until final checks are complete — the fuse protects both the wiring run and the vehicle from a catastrophic short.
Step 3 — Secure and protect
Use grommets wherever the cable passes through the firewall, and secure the run to the chassis with wire loom and cable ties, keeping it clear of moving components.
Choose and Install a Proper Grounding Point
Step 1 — Find a suitable chassis ground
Choose a solid piece of metal chassis close to the amp location. Avoid painted or corroded surfaces — sand the paint away to bare metal so the ring terminal makes direct metal-to-metal contact.
Step 2 — Keep the ground run short
A long or high-resistance ground causes noise and poor amplifier performance, so keep the ground cable as short as possible. Use the same gauge as the power cable and tighten the terminal securely. Our full guide to grounding an amplifier covers common grounding mistakes and how to diagnose a bad ground if you’re hearing noise after install.
Signal Wiring — RCA, Remote Turn-On, and Avoiding Noise
Step 1 — Run RCA away from power
Route RCA cables on the opposite side of the car from the power cable. Crossing paths once is fine, but never run them side-by-side for long distances — use quality shielded RCA cables to reduce hiss and alternator whine.
Step 2 — Remote turn-on wiring
Connect the remote turn-on lead from your head unit (or LOC) to the amp’s remote terminal. If you’re using a LOC, follow the manufacturer’s wiring instructions to ensure proper grounding and signal level.
Step 3 — Input gain staging
Set the amp’s gain low at first. With a familiar test track playing at moderate volume, increase gain gradually until the amp reaches useful loudness without distortion — never set gain high to compensate for a head unit that isn’t turned up enough. Our guide to adjusting amp gain walks through the process in more detail, including how to use a multimeter for a more precise setting.
Speaker & Subwoofer Connections
Step 1 — Correct impedance & wiring
Confirm your speaker impedance and wire accordingly — bridging channels changes the impedance load, so verify your amplifier’s specs before bridging to avoid overpowering or overheating it. See our guide on matching an amplifier to your speakers for more on getting this pairing right.
Step 2 — Secure speaker terminals
Use proper connectors and avoid loose twisted wires. Solder or crimp ring/spade terminals where possible, then insulate and secure everything to avoid shorts.
Final Setup, Fuse Install, and Testing
Step 1 — Pre-power checks
Before installing the battery fuse, double-check every connection — power, ground, remote, RCA, speaker wiring — and confirm the fuse holder is still empty. Verify no tools or stray wire strands remain in the work area.
Step 2 — Install fuse and power up
Install the fuse at the battery, then reconnect the negative battery terminal. Power on the head unit and verify the amp receives the remote-on signal and powers up cleanly, with no smoke, smell, or abnormal heat.
Step 3 — Audio check
Play test music at low volume and check each speaker for signal, listening for distortion, alternator whine, or hiss. If the amp isn’t behaving as expected, a multimeter check can confirm whether the issue is actually electrical rather than a wiring or gain problem.
Want to learn more about amplifier power and wattage so you choose the correct cable and fuse next time? Check our explainer: amplifier wattage explained.
Common Issues & Quick Fixes
- No power: Check the remote lead and the fuse near the battery. If the amp still won’t power up, our car amplifier no-sound troubleshooting guide covers the full diagnostic sequence.
- Alternator whine: Re-route RCA cables away from power and use better-shielded RCA.
- Distortion: Lower the gain, confirm speaker impedance, and check speaker wiring.
- Overheating: Verify ventilation around the amp and confirm you’re using the correct power wire gauge — our amplifier overheating guide covers common causes in more depth.
Wiring Kit Checklist (Printable)
Copy this checklist to your phone or print it before you begin:
- Power cable (specify AWG): ______
- Ground cable (same gauge as power): ______
- In-line fuse + fuse holder (type & rating): ______
- RCA cables (length): ______
- Remote turn-on lead: ______
- Speaker wire (gauge & length): ______
- Ring terminals & butt connectors: ______
- Wire loom / grommets / cable ties: ______
- Multimeter: ______
- Crimper / wire stripper / panel tools: ______
- Solder & heat shrink (optional): ______
Tip: Fill in the blanks with the exact specs for your amp — found in the owner’s manual — before shopping.
