Alpine MRV-M500 Review in Brief
The Alpine MRV-M500 is a compact mono Class D car amplifier for one clear job: powering a single subwoofer without taking over the trunk or cargo area.
Alpine rates it at 300 watts RMS into 4 ohms and 500 watts RMS into 2 ohms at 14.4 volts. Match the final speaker impedance first when choosing this older monoblock.
There is an important qualification before looking at the numbers. Alpine’s official product page now marks the MRV-M500 as discontinued. That does not make every remaining unit irrelevant, but it changes the buying question.
This amplifier makes the most sense as legitimate remaining stock or a carefully checked used unit with a clear return path. It is a poor fit for buyers who need current support and a fresh manufacturer warranty.
Quick answer: The Alpine MRV-M500 remains practical for a single subwoofer when its 2-ohm or 4-ohm final load matches the system. Give the installation adequate wiring and ventilation. Also check the unit’s condition and warranty outlook.
Its compact chassis, simple controls, and predictable rated output are useful strengths. Its discontinued status, lack of modern connectivity features, and limited headroom compared with larger monoblocks mean you should shop carefully rather than buy on the Alpine badge alone.
- Alpine MRV-M500 at a glance
- What the MRV-M500 is designed to do
- Power and real-world subwoofer matching
- Controls and setup: gain, LPF, and bass EQ
- Installation and chassis practicality
- What changes because the model is discontinued
- Alpine MRV-M500 alternatives
- Final verdict
- Frequently Asked Questions
Alpine MRV-M500 at a Glance
| Specification | Alpine MRV-M500 |
|---|---|
| Amplifier type | Mono Class D digital power amplifier |
| Rated power at 4 ohms | 300 W RMS × 1 at 14.4 V, ≤1% THD+N |
| Rated power at 2 ohms | 500 W RMS × 1 at 14.4 V, ≤1% THD+N |
| Maximum power | 1,100 W total maximum, according to Alpine’s published specification |
| Frequency response | 20 Hz–200 Hz |
| Low-pass filter | 50 Hz–200 Hz variable control |
| Low-pass slope | 24 dB/octave |
| Bass EQ | Variable boost up to +12 dB centered at 50 Hz |
| Input sensitivity | RCA and speaker-level input options; set the gain to the source rather than treating it as a volume control |
| Chassis | Compact V-Power design with snap-on terminal covers |
| Operating system | 12-volt negative-ground vehicle electrical system |
The table describes the amplifier’s intended range, not a promise that every installation will produce the same result. The 300-watt and 500-watt figures are Alpine’s ratings at 14.4 volts and a stated distortion limit. Your vehicle’s charging voltage, wiring, enclosure, subwoofer sensitivity, and final impedance all affect how the system behaves in daily use.
What the MRV-M500 Is Designed to Do
The MRV-M500 is a dedicated subwoofer amplifier. It has one amplified channel, a low-frequency operating range, and controls aimed at integrating a single subwoofer with a factory or aftermarket head unit. It is not a replacement for a four-channel amplifier, and it is not the best tool for powering a full set of cabin speakers. Its value comes from keeping the bass section of the system separate and easier to tune.
That single-channel design makes speaker impedance more important than it is with many full-range multi-channel amplifiers. Alpine specifies 500 watts at 2 ohms and 300 watts at 4 ohms. Neither number is automatically better. A 4-ohm load may be the safer match for one subwoofer. A 2-ohm final load can make sense when the driver and wiring support it.
The chassis is one of the MRV-M500’s more useful features. Alpine describes the newer V-Power design as roughly 40 percent smaller than the prior design, and the compact black-and-silver enclosure is easier to place than a large high-output monoblock. That does not mean it can be hidden in an unventilated space. A small amplifier still turns electrical power into heat, and the installation must provide a stable mounting surface and a reasonable path for airflow.
Power and Real-World Subwoofer Matching
With a single 4-ohm subwoofer
A single 4-ohm voice-coil subwoofer is the simplest match. Alpine rates the MRV-M500 for 300 watts RMS at 14.4 volts in this configuration. Compare that figure with the subwoofer’s continuous or RMS rating, not its larger peak or “maximum” number. If the driver is comfortable around 250–350 watts RMS, the Alpine’s 4-ohm output is in the right territory.
Do not assume that more amplifier power is always safer for the speaker. A properly set 300-watt amplifier can work well. An oversized amplifier can cause trouble when it clips or meets an unsuitable enclosure. The enclosure, gain setting, and low-frequency boost matter alongside the headline wattage.
With a 2-ohm final load
The 2-ohm configuration unlocks the MRV-M500’s 500-watt RMS rating. You can reach that load with a single 2-ohm voice-coil driver or a dual-voice-coil subwoofer. Follow the driver manufacturer’s wiring recommendations. Verify the final load at the amplifier; do not infer it from the number of terminals on the basket.
A 500-watt rating helps only when the subwoofer, enclosure, vehicle electrical system, and wiring can support it. Use the right power cable and a fuse near the battery. Keep the ground short and secure. Do not treat the 2-ohm rating as permission to connect a lower-impedance arrangement. If the final load falls below Alpine’s range, choose a different wiring plan or amplifier.
How to think about dual voice coils
Dual voice-coil wiring is where many otherwise careful installations go wrong. Wire a pair of 4-ohm coils in parallel for a 2-ohm final load or in series for an 8-ohm final load, depending on the driver and amplifier limits. A pair of 2-ohm coils creates different options. Before buying the amplifier, confirm the coil impedance and use a diagram that shows the final load at the amplifier terminals.
For broader system planning, our guide to the best monoblock car amplifiers explains why the final impedance, subwoofer rating, and enclosure type should be considered together. The MRV-M500 is a good example of why choosing by maximum watts alone is unreliable.
Controls and Setup: Gain, LPF, and Bass EQ

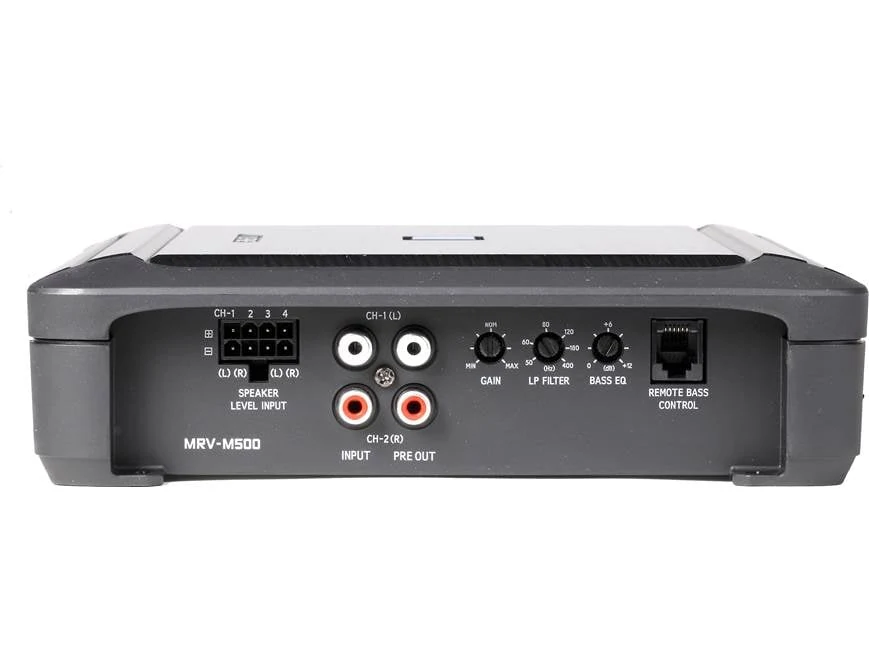

The MRV-M500 gives you the controls needed for a conventional subwoofer integration: gain, low-pass filtering, bass EQ, and a remote-bass-control connection. The controls are useful because they are straightforward, but they still need to be set deliberately. Gain is not a second volume knob; it is the adjustment that lets the amplifier reach the intended output from the head unit’s signal without unnecessary noise or clipping.
A practical gain-setting sequence
- Set the amplifier gain to its minimum position. If the input-sensitivity selector or source specification calls for a particular voltage range, use the setting appropriate to the head unit or line-output converter.
- Set the head unit’s tone controls, loudness processing, and bass boost to a neutral starting point. Choose a clean recording with consistent bass rather than a heavily compressed test track.
- Raise the head unit to a high but clean reference level—below the point where the source begins to clip or sound strained.
- Increase the amplifier gain slowly until the subwoofer reaches the intended level or audible distortion begins, then back the control down. If you have an oscilloscope, distortion detector, or a documented voltage target, use it instead of relying only on hearing.
- After the gain is set, use the head unit’s subwoofer level control for normal day-to-day adjustment. Do not use the gain control as a frequent volume control.
This sequence is more useful than turning the gain until the bass “looks powerful.” Excessive gain can make the system noisy and push the subwoofer beyond a controlled range. Alpine’s manual also emphasizes the installation and wiring instructions. Do not assume a compact amplifier tolerates every vehicle layout.
Set the low-pass filter to blend, not announce itself
The variable low-pass filter covers approximately 50–200 Hz. In a typical system, start around 70–90 Hz, then listen and measure. If the subwoofer pulls attention toward the rear of the vehicle, the crossover may be too high. The slope, phase, or placement may also need attention. If the front speakers sound thin near the crossover region, the setting may be too low.
The exact number is not universal. Door speakers, enclosure response, cabin gain, and head-unit filtering all change the result. Our guide to how to tune a monoblock amplifier covers the broader process. It balances crossover, gain, phase, and bass level instead of treating the filter dial as a one-time preset.
Use bass EQ sparingly
The MRV-M500’s bass EQ can add up to 12 dB centered around 50 Hz. That is a substantial boost, and it should not be the first remedy for an underperforming system. Bass EQ cannot compensate for an undersized enclosure, a weak electrical supply, an incorrectly wired subwoofer, or an amplifier that is already running out of clean output. Start with the control at zero, confirm that the subwoofer and enclosure are working correctly, and add only enough boost to achieve the desired balance without audible strain.
Installation and Chassis Practicality
The compact enclosure makes the MRV-M500 easier to install than a large high-output monoblock, but the electrical requirements still deserve full-size attention. Route the fused power cable from the battery and secure the fuse nearby. Use a solid chassis ground. Keep signal wiring away from avoidable electrical noise. The ground point should be clean, secure, and appropriate for the current the amplifier can draw.
Alpine specifies a 12-volt negative-ground vehicle system. That wording matters for an unusual installation, a boat, a utility vehicle, or a custom electrical system. A compact car-audio amplifier is not automatically a marine amplifier. Conformal coating or a covered terminal area does not prove that the unit is waterproof.
Leave room around the chassis. Do not bury it under carpet, foam, or a sealed trim panel. The snap-on terminal covers protect the connection area and make the installation neater. They do not replace strain relief, correct fuse sizing, or ventilation. Our guide to installing a car amplifier safely covers the wiring and mounting decisions to make before applying power.
What Changes Because the Model Is Discontinued?
Check the unit, seller, and return path
The MRV-M500’s specifications remain useful, but the buying risk differs from that of a current Alpine amplifier. Alpine’s official page marks the model discontinued. A buyer may encounter old inventory, an open-box unit, or used hardware that has spent years in a hot vehicle or damp cargo area. The condition of the terminals, controls, chassis, and cooling path can matter as much as the original specification sheet.
Ask whether the unit is new old stock, refurbished, or used; whether the seller accepts returns; and whether the serial number and packaging are present. A listing that describes the amplifier only as “tested” may not tell you how it was tested, at what load, or for how long. Because the model is older, a clear return path is more valuable than a vague promise that it powers on.
When a current model makes more sense
The discontinued status also limits the case for paying a premium simply because the amplifier carries the Alpine name. If the asking price approaches that of a current monoblock with a valid warranty and comparable power, the newer option may be the more rational purchase.
The MRV-M500 becomes attractive when its compact chassis, familiar control layout, and 2-ohm/4-ohm output fit the system. The condition must also be verifiable.
Alpine MRV-M500 Alternatives
For a current Alpine option, compare the MRV-M500 with our Alpine S-A60M review. It is a more relevant comparison for readers who want a presently supported Alpine mono amplifier rather than an older V-Power unit.
If you are still deciding what type of amplifier belongs in the vehicle, start with our best car amplifiers for bass guide. It compares the broader choice between compact monoblocks, multi-channel designs, and higher-output options. The MRV-M500 is a focused solution; it should not be selected when the system actually needs several full-range channels.
Finally, use the practical guides on tuning a monoblock amplifier and installing a car amplifier safely before judging the amplifier by its first listening session. Poor gain structure, an incorrect final load, or inadequate wiring can make a suitable amplifier appear defective.
Alpine MRV-M500 Product Image
Check the Alpine MRV-M500 on Amazon
Final Verdict
Best use case
The Alpine MRV-M500 remains sensible for a clearly defined installation: one subwoofer, a verified 2-ohm or 4-ohm final load, realistic power expectations, and enough room for the amplifier to breathe. Its 300-watt 4-ohm and 500-watt 2-ohm ratings cover common daily-driver systems. The variable low-pass filter and bass EQ provide the basic tools for proper integration.
Why the buying decision needs care
The qualification is the product’s age and discontinued status. A new buyer who needs current support, a fresh warranty, or substantial extra headroom should look at a current alternative instead.
Treat the MRV-M500 as a specific opportunity. Buy it when the condition, price, return policy, and wiring plan make sense. Do not buy it simply because a listing displays a large maximum-watt number.
Choose the MRV-M500 if: you are building a single-subwoofer system and the final impedance matches the amplifier. The compact chassis should solve a real installation constraint. Verify the condition of remaining stock or used units.
Look elsewhere if: you need active manufacturer support or want to power cabin speakers as well as a subwoofer. Also look elsewhere if you cannot confirm the unit’s condition and return coverage.
Frequently Asked Questions
Power, setup, and buying questions
How much power does the Alpine MRV-M500 make at 2 ohms?
Alpine rates the MRV-M500 at 500 watts RMS × 1 into a 2-ohm load at 14.4 volts and no more than 1% THD+N. The subwoofer and wiring must be designed for that final load; do not connect a lower-impedance arrangement simply to chase the higher rating.
How much power does the Alpine MRV-M500 make at 4 ohms?
The published 4-ohm rating is 300 watts RMS × 1 at 14.4 volts and no more than 1% THD+N. That makes it a reasonable match for many single 4-ohm subwoofers whose continuous rating is in the same general range.
What size subwoofer is a good match for the MRV-M500?
The correct match depends more on the subwoofer’s RMS rating, voice-coil configuration, enclosure, and final impedance than on cone diameter. Start with a driver rated around 300 watts RMS at 4 ohms or 500 watts RMS at a 2-ohm final load. Follow the manufacturer’s enclosure and wiring recommendations.
How should I set the MRV-M500 gain?
Start with the gain at minimum and set the head unit to a clean reference level. Raise the amplifier gain slowly until you reach the desired output or hear distortion. Back it down from that point. Use the subwoofer level control for normal listening adjustments, and do not treat gain as a second volume knob.
Is the Alpine MRV-M500 still worth buying even though it is discontinued?
It can be worthwhile when the unit is correctly matched, the price reflects its age, and the seller provides a credible condition description and return path. Buyers who need current manufacturer support or a new warranty should generally prefer a current monoblock instead.
