FiiO K5 Pro ESS Review: The Power Pick for Demanding Headphones

The FiiO K5 Pro ESS sits at a specific point in the headphone amplifier market: above the entry-level units that work for easy-to-drive headphones, and below the balanced output tier. At $169.99, it delivers 1,500mW into 32Ω from a dedicated power supply — enough to drive demanding full-size dynamics and planar magnetics to their full potential, which most units at this price cannot claim. Specifically, it appeared as the power pick in the best DAC/amp combo under $250 roundup for one reason: its single-ended output power exceeds most units in the group, including the more expensive FiiO K7.

This review covers who actually needs the K5 Pro ESS, what the power advantage translates to in practice, where its real limits are, and which headphones get the most from it. If you’re deciding between the K5 Pro ESS and the units above or below it in this price range, this is the complete picture.

Who Is the FiiO K5 Pro ESS For?

The K5 Pro ESS is built for listeners who already know their headphones need more power than a laptop or entry-level DAC/amp can provide. Specifically, it is not the right first purchase for someone still testing whether a dedicated amp makes a difference — the Fosi Audio Q4 does that job at a third of the price. The K5 Pro ESS is the correct tool once you know you need it: specifically, when you own or are planning to buy headphones that require real current and voltage swing to perform correctly.

Specifically, three profiles fit this unit precisely. Listeners who own 150–300Ω dynamic headphones — Sennheiser HD 600, HD 650, HD 6XX, or Beyerdynamic DT 990 Pro 250Ω — where the impedance demands voltage that bus-powered units cannot produce cleanly. Listeners who own planar magnetic headphones from HiFiMan, Audeze, or similar brands, where current delivery determines whether the drivers open up or stay compressed. And listeners who want a single unit that handles USB, optical, coaxial, and analogue line-in from an existing DAC — the most comprehensive input set at this price. For a practical overview of whether your specific headphones warrant the upgrade, the headphone amp guide covers the decision framework clearly.

FiiO K5 Pro ESS — Key Specifications

Specifically, the figure that matters most here is 1,500mW into 32Ω. For context, a bus-powered unit like the Fosi Audio Q4 delivers around 150mW at the same impedance — the K5 Pro ESS produces roughly ten times the output power. Furthermore, at high-impedance loads like 300Ω, that power advantage becomes even more significant because high-impedance headphones require more voltage swing, and a dedicated mains-powered supply provides what bus-powered designs cannot.

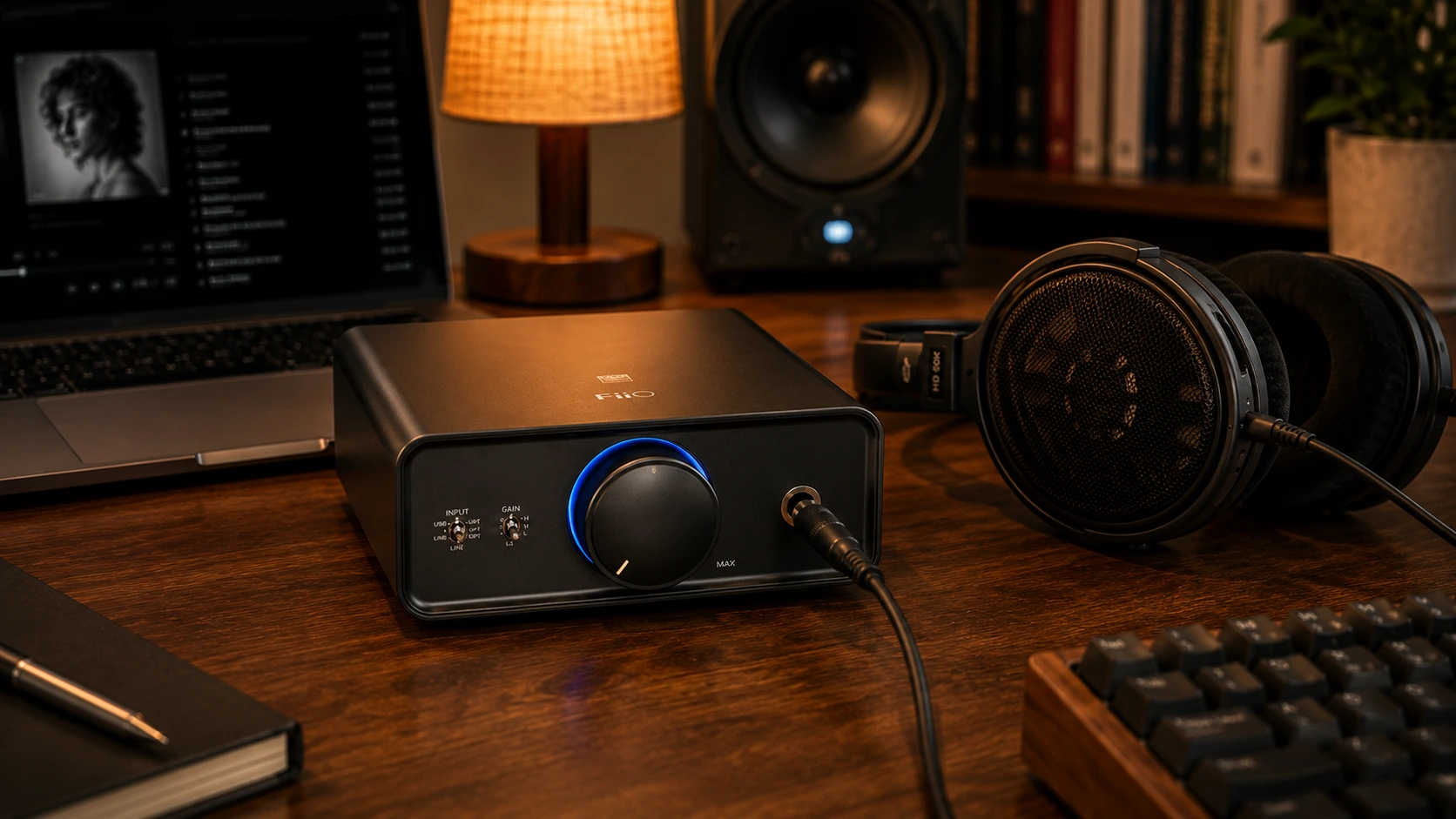

Design and Build Quality

The K5 Pro ESS is a substantial desktop unit — noticeably larger than the compact units in this category. The chassis is all-metal, the volume knob is large and well-damped, and the overall construction communicates that this is a purpose-built audio device rather than a compact convenience product. Specifically, the gain selector switch on the front panel is firm and precise. The 6.35mm headphone jack is correctly positioned at the front right, and the input selector switch is clearly labelled and easy to operate.

Specifically, the rear panel is where the K5 Pro ESS distinguishes itself from the competition: USB input, optical Toslink, coaxial, RCA line-in, and RCA line-out are all present — a more complete I/O set than most units at twice the price. The DC power input accepts the included 15V adapter, which sits between the unit and the wall outlet. Furthermore, the power supply is well-built and does not introduce audible noise.

However, one design note worth flagging: the unit has no headphone volume at unity gain — the volume control’s useful range starts quite low on the dial for sensitive IEMs at L1 gain. Specifically, for IEM listeners this is actually desirable, as it means the K5 Pro ESS can be set precisely for quiet listening without channel imbalance at the volume pot’s bottom end. For full-size headphone listeners the range feels natural throughout.

Sound Quality

Overall, the K5 Pro ESS sounds controlled, detailed, and neutral. Specifically, the AKM AK4493EQ chip contributes a smooth, slightly warm character that avoids the hyper-analytical edge of ESS-based units while maintaining high resolution and low noise. The amplifier stage is transparent — it does not colour the signal significantly, which means what you hear is primarily the DAC chip’s character and the headphones themselves.

With high-impedance dynamics

Specifically, Sennheiser HD 600 (300Ω), HD 650, and HD 6XX are the benchmark headphones for this category, and the K5 Pro ESS handles them correctly. The bass has weight and extension, the midrange is natural and present, and the soundstage has the air and space these headphones are known for. By contrast, the same headphones through a bus-powered unit sound thin, rolled-off in the bass, and spatially congested. Indeed, the difference is not subtle — it is the difference between hearing what these headphones can do and hearing a reduced version of it.

With planar magnetics

Specifically, planar magnetic headphones — HiFiMan HE-400se, HE-X4, Audeze LCD-1 — require current delivery that most desktop units at this price cannot provide cleanly. Consequently, the K5 Pro ESS drives them without the bass compression and dynamic limiting that underpowered amplifiers impose on planar drivers. Specifically, at H2 gain, the HE-400se opens up noticeably: the low-frequency extension tightens and deepens, and the sense of dynamic headroom expands. Consequently, for planar owners specifically, this is the minimum recommended amplifier level.

With sensitive IEMs

Specifically, the four-level gain control is essential for IEM use. At L1 gain, the noise floor is low enough for sensitive in-ears, and the volume control provides fine-grained adjustment at safe listening levels. Furthermore, the K5 Pro ESS does not hiss audibly with sensitive IEMs at L1 — a common failure point for high-power amps used with low-impedance IEMs. Furthermore, switching to H1 or H2 for full-size headphones and back to L1 for IEMs takes two seconds and requires no software.

With mid-impedance headphones

Beyerdynamic DT 990 Pro 250Ω, DT 880 Pro 250Ω, and AKG K712 Pro represent the mid-tier headphone category the K5 Pro ESS handles most comfortably. The gain and power combination suits these impedances naturally — H1 gain is typically correct for 250Ω dynamics at comfortable listening volumes, with plenty of headroom for peaks and dynamic passages.

Connectivity and Inputs

The K5 Pro ESS has four inputs — USB, optical, coaxial, and RCA line-in — making it the most input-flexible unit in this price category. Specifically, the RCA line-in is a specific feature that deserves attention: it allows the K5 Pro ESS to be used as a pure headphone amplifier with an external DAC connected via analogue. For listeners who already own a standalone DAC or want to upgrade the DAC later without replacing the amplifier, this analogue input preserves that flexibility. Indeed, no other unit at this price offers this combination of four inputs plus the output power the K5 Pro ESS delivers.

USB audio is class-compliant — no drivers required on any major operating system. The USB input supports up to 768kHz/32-bit PCM and native DSD512, which covers every current streaming and local audio format. Optical Toslink handles 24-bit/192kHz maximum, which covers every TV, game console, and CD player output. Coaxial adds compatibility with streamers and CD transports that lack USB. Furthermore, input switching is handled by the front panel selector — immediate, no software needed.

The RCA line output connects to powered bookshelf speakers, giving the K5 Pro ESS preamp capability for a combined headphone and speaker desktop setup. The line output level is fixed, so speaker volume is controlled at the powered monitor rather than at the K5 Pro ESS.

How the FiiO K5 Pro ESS Compares

FiiO K5 Pro ESS vs Fosi Audio Q4

The Q4 is the correct entry point for listeners testing whether a DAC/amp makes a difference on easy-to-drive headphones. The K5 Pro ESS is the correct tool once you’ve confirmed you need more power. Specifically, the Q4 delivers around 150mW into 32Ω versus the K5 Pro ESS’s 1,500mW — on headphones under 80Ω the Q4 is often adequate. However, on anything above 150Ω the K5 Pro ESS’s advantage is audible and meaningful. If your headphones are under 80Ω and you are happy with the Q4, the upgrade is not necessary.

FiiO K5 Pro ESS vs FiiO K7

The K7 is the natural next step above the K5 Pro ESS — dual AK4493S chips, THX AAA 788+ amplifier, and 2W balanced output via 4.4mm Pentaconn. Specifically, in single-ended mode, the K5 Pro ESS actually outperforms the K7 by 300mW. Consequently, the K7’s advantage is exclusively the balanced output path: for headphones without balanced termination, the K5 Pro ESS is the better value at $50 less. For listeners who use or plan to use balanced headphone cables, the K7 is the correct upgrade.

FiiO K5 Pro ESS vs Topping DX3 Pro+

Specifically, the DX3 Pro+ offers LDAC Bluetooth and a remote control that the K5 Pro ESS lacks. The K5 Pro ESS outperforms it in raw headphone output power (1,500mW vs ~1,000mW) and adds the RCA line-in input. Consequently, for wireless streaming use cases, the DX3 Pro+ is the correct choice. For wired desktop setups with demanding headphones, the K5 Pro ESS is the stronger tool.

Best Headphone Pairings

The K5 Pro ESS performs best with headphones that need real power — 150Ω and above, or planar magnetic. Below is a practical pairing guide with recommended gain settings:

Is the FiiO K5 Pro ESS Worth It?

Specifically, at $169.99, the FiiO K5 Pro ESS is worth buying for any listener whose headphones are rated 150Ω or above, or whose headphones are planar magnetic. It is the correct purchase once you know your headphones need more power than entry-level alternatives provide. Furthermore, the four-level gain control, comprehensive input set, and 1,500mW output power combine to make it a genuinely capable desktop solution that does not require an upgrade path — this is where many listeners who buy once and keep it for years end up.

However, the clearest reason not to buy it: your headphones are easy to drive. For headphones under 100Ω, the power difference between the K5 Pro ESS and a unit like the Fosi Audio Q4 is often inaudible in practice. Consequently, spending $90 more to drive an ATH-M50x marginally better is not a rational purchase — the Q4 handles those headphones correctly. Specifically, know your headphones’ impedance and sensitivity before deciding.

Final Verdict

The FiiO K5 Pro ESS occupies a specific and important position in the headphone amplifier market. Specifically, it is the unit that correctly drives 300Ω dynamics and planar magnetics — the headphones that entry-level units underpower — at a price that does not demand a significant investment. At 1,500mW into 32Ω with four-level gain, an AKM AK4493EQ DAC, and the most comprehensive input set in this category, it delivers genuine value for listeners who need what it offers.

However, the limitation is equally specific: no balanced output, no Bluetooth. However, for listeners who want those features, the FiiO K7 adds balanced output at $50 more and the Topping DX3 Pro+ adds Bluetooth at $30 more. Indeed, neither of those units matches the K5 Pro ESS’s single-ended output power. Consequently, if you do not need balanced or wireless, the K5 Pro ESS is the strongest choice at this price.

For a complete picture of every unit at this price point, the best headphone amplifier under $200 guide covers the full comparison. If you are choosing between the K5 Pro ESS and the balanced output tier, the FiiO K7 review covers exactly where the balanced upgrade makes and does not make sense.

Check Price on Amazon

Approx. price: $169.99. Best power pick — 1,500mW into 32Ω, AKM AK4493EQ, four-level gain, USB/optical/coaxial/RCA inputs. Amazon’s Overall Pick.
